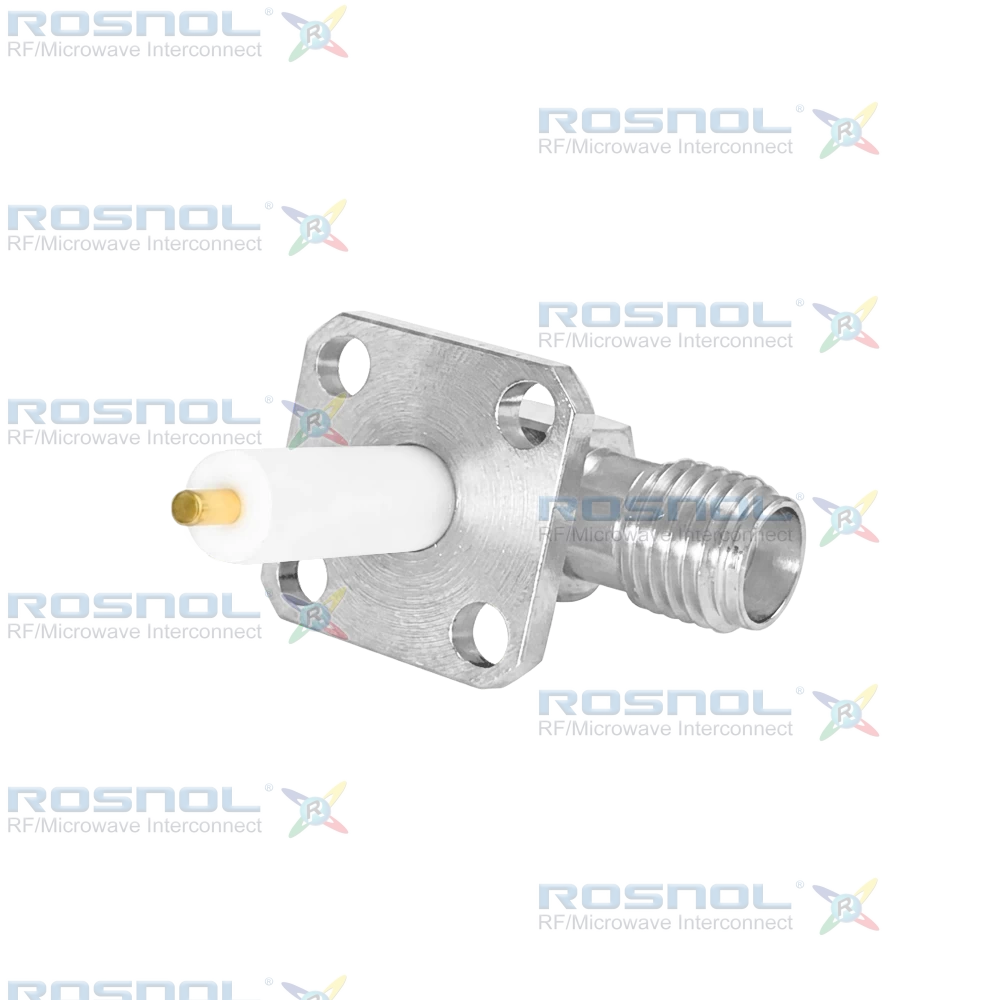

SMA Female RA Connector, 4 Hole Flange, 18 GHz

Order No:SMA2GFA59-2930A/9X
Add Cart

Key Specifications

Type Design:
Standard
Impedance (Ohm):
50
Body Style:
Right Angle
Frequency, Max (GHz):
18
VSWR, Max:
1.30
Connector Series:
SMA
Connector Gender:
Jack (Female)
Connection Method:
Threaded (Screw-lock)
Center Contact:
Soldered
Mount Method:
4 Hole Flange
Body Material:
Stainless Steel
Body Plating:
Passivated
Captivated Type:
Mechanical Captivation
Bankend Type:
Coaxial End

Description

SMA Female Right Angle Connector, 4 Hole Flange Mount, Stub Terminal, 8.64 mm Hole Spacing, 50 Ω, 18 GHz, VSWR ≤ 1.3.

ROSNOL SMA2GFA59-2930A/9X is an SMA Jack (Female) Right Angle Connector designed for RF and microwave applications requiring secure panel mounting and reliable high-frequency signal transmission. Featuring a 4-Hole Flange Mount design with 8.64 mm hole spacing, this connector ensures stable installation and accurate interface alignment in compact RF assemblies. Designed with a characteristic impedance of 50 Ω and operating from DC to 18 GHz, it delivers a VSWR of ≤1.30 and low insertion loss, helping maintain signal integrity across broadband communication systems. The solder attachment and stub terminal construction make it suitable for high-density PCB and enclosure installations.

The connector utilizes a beryllium copper center contact with gold plating over a non-magnetic nickel-phosphorus underplate to provide excellent conductivity and contact reliability. Its stainless-steel body features a passivated finish for enhanced corrosion resistance and long-term durability, while the PTFE insulator offers stable dielectric performance at microwave frequencies. Mechanical characteristics include a screw-lock coupling mechanism, center contact captivation of at least 27 N axial force, a minimum of 500 mating cycles, and an operating temperature range from -65°C to +165°C.

This SMA flange mount connector is ideal for RF communication systems, wireless infrastructure, microwave equipment, antenna modules, and precision test instruments. Its robust mechanical design, stable electrical performance, and compact right-angle configuration make the ROSNOL SMA2GFA59-2930A/9X a dependable interconnect solution for engineers requiring reliable RF connectivity in space-constrained applications.
