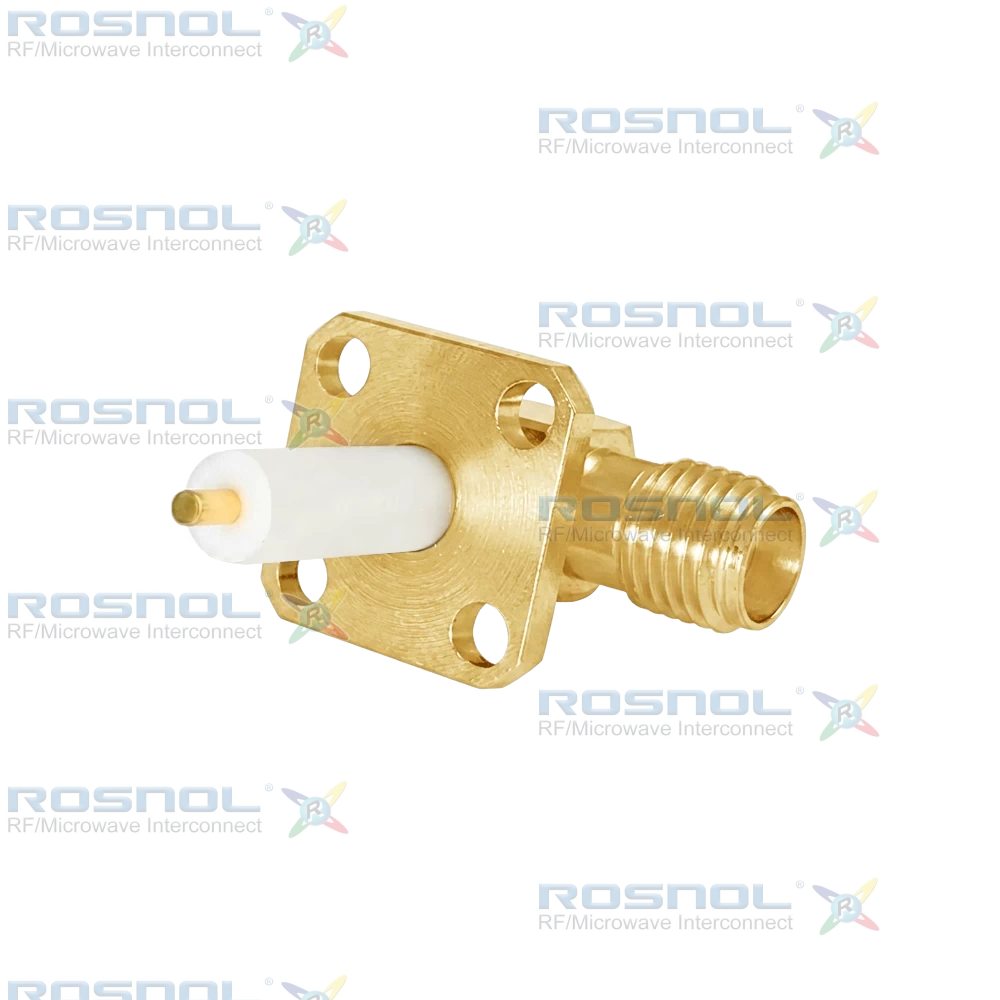

SMA Female RA Connector, 4 Hole Flange, 18 GHz

Order No:SMA2GFA59-2930A/91
Add Cart

Key Specifications

Type Design:
Standard
Impedance (Ohm):
50
Body Style:
Right Angle
Frequency, Max (GHz):
18
VSWR, Max:
1.30
Connector Series:
SMA
Connector Gender:
Jack (Female)
Connection Method:
Threaded (Screw-lock)
Center Contact:
Soldered
Mount Method:
4 Hole Flange
Body Material:
Brass
Body Plating:
Gold Plating (Non-magnetic nickel-phosphorus underplating)
Captivated Type:
Mechanical Captivation
Bankend Type:
Coaxial End

Description

SMA Female Right Angle Connector, 4 Hole Flange Mount, Stub Terminal, 8.64 mm Hole Spacing, 50 Ω, 18 GHz, VSWR ≤ 1.3.

ROSNOL SMA2GFA59-2930A/91 is an SMA Jack (Female) Right Angle Connector engineered for RF and microwave systems that demand secure mounting and consistent signal performance. This connector incorporates a 4-Hole Flange Mount structure with 8.64 mm hole spacing, making it suitable for panel-mounted RF assemblies and communication equipment. Supporting frequencies from DC to 18 GHz with 50 Ω impedance, the connector maintains a VSWR of ≤1.30 and low insertion loss for efficient power transfer and reduced signal reflection. The right-angle solder attachment design enables flexible integration into compact electronic assemblies.

The center contact is manufactured from beryllium copper with gold plating over a non-magnetic nickel-phosphorus underplate, while the brass body is finished with the same gold-plated treatment to enhance conductivity and corrosion resistance. A PTFE insulator provides excellent dielectric stability for high-frequency applications. Mechanical features include a screw-lock coupling system, center contact captivation of at least 27 N axial force, at least 500 mating cycles, and reliable operation across a temperature range of -65°C to +165°C.

The SMA2GFA59-2930A/91 is suitable for RF communication devices, microwave subsystems, antenna interfaces, instrumentation equipment, and testing platforms. Combining durable gold-plated construction, stable impedance control, and secure flange mounting, this connector offers reliable RF interconnection performance for demanding commercial and industrial applications.
