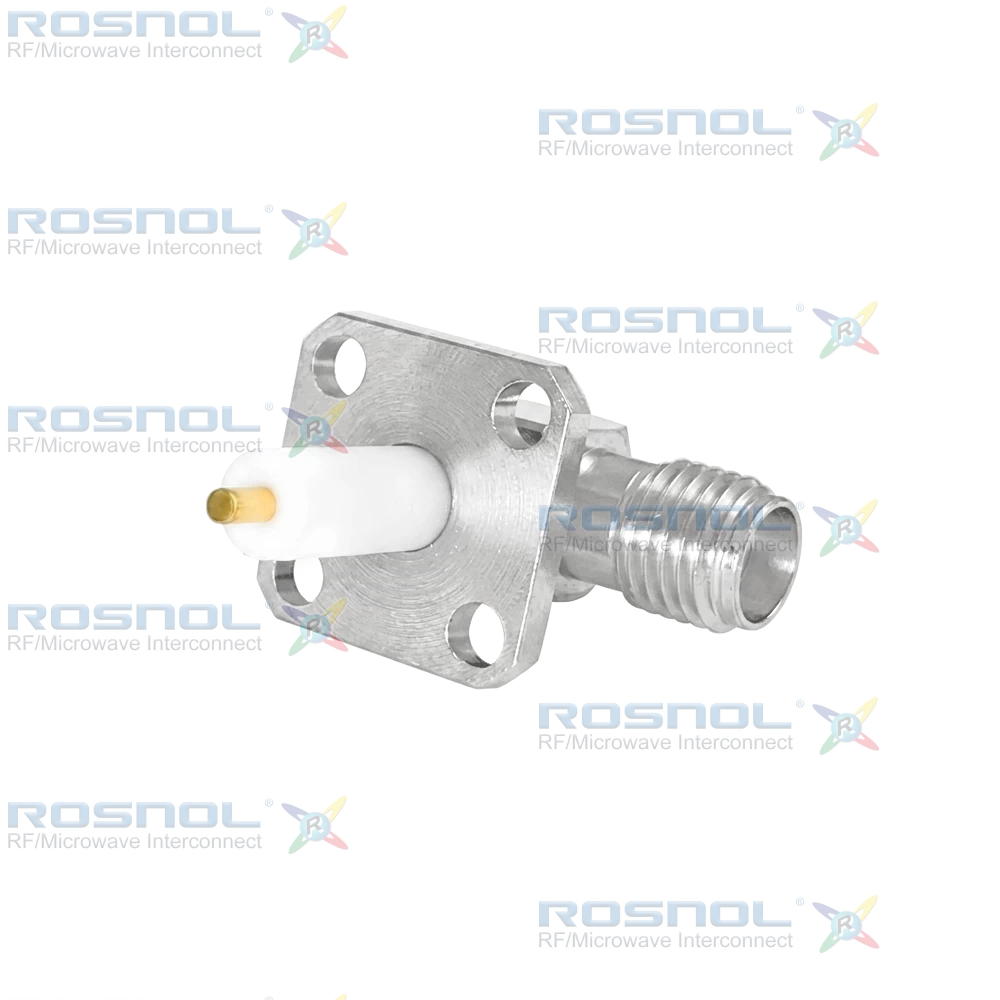

SMA Female RA Connector, 4 Hole Flange, 18 GHz

Order No:SMA2GFA59-2730A/9X
Add Cart

Key Specifications

Type Design:
Standard
Impedance (Ohm):
50
Body Style:
Right Angle
Frequency, Max (GHz):
18
VSWR, Max:
1.30
Connector Series:
SMA
Connector Gender:
Jack (Female)
Connection Method:
Threaded (Screw-lock)
Center Contact:
Soldered
Mount Method:
4 Hole Flange
Body Material:
Stainless Steel
Body Plating:
Passivated
Captivated Type:
Mechanical Captivation
Bankend Type:
Coaxial End

Description

SMA Female Right Angle Connector, 4 Hole Flange Mount, Stub Terminal, 8.64 mm Hole Spacing, 50 Ω, 18 GHz, VSWR ≤ 1.3.

ROSNOL SMA2GFA59-2730A/9X is an SMA Jack (Female) Right Angle RF Connector designed for high-frequency RF and microwave applications requiring secure panel installation and reliable signal transmission. This connector features a 4-Hole Flange Mount configuration with 8.64 mm hole spacing, providing excellent mechanical stability for equipment panels and RF assemblies. Designed with a 50 Ω impedance and operating from DC to 18 GHz, it offers a VSWR of ≤1.30 and low insertion loss, helping maintain signal integrity across a broad frequency range. The right-angle solder attachment design with a stub terminal enables efficient integration into compact RF systems and communication modules.

The connector incorporates a beryllium copper center contact with gold plating over a non-magnetic nickel-phosphorus underplate to ensure excellent conductivity and long-term contact reliability. The body is manufactured from stainless steel with a passivated finish, providing enhanced corrosion resistance and mechanical durability. A PTFE insulator maintains stable dielectric performance across the operating frequency range. Mechanical features include screw-lock coupling, a minimum of 500 mating cycles, center contact captivation of at least 27 N axial force, and an operating temperature range of -65°C to +165°C for dependable performance in demanding environments.

This SMA flange mount connector is suitable for RF communication systems, microwave equipment, wireless infrastructure, antenna assemblies, RF test platforms, and instrumentation applications. Engineers and system integrators benefit from its stable electrical characteristics, durable stainless-steel construction, and secure mounting design. The ROSNOL SMA2GFA59-2730A/9X provides a reliable interconnect solution for high-frequency signal transmission where mechanical robustness and consistent RF performance are essential.
