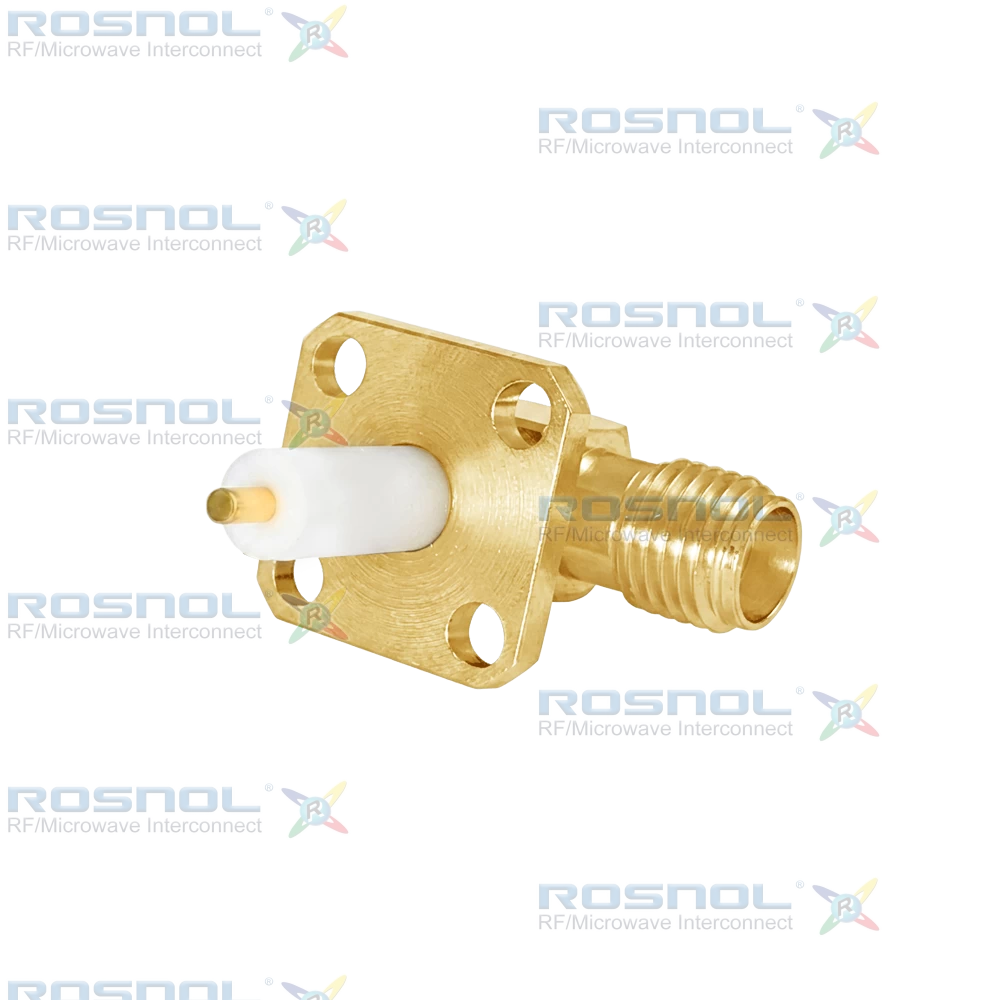

SMA Female Right Angle Connector, 4 Hole Flange Mount, Stub Terminal, 8.64 mm Hole Spacing, 50 Ω, 18 GHz, VSWR ≤ 1.3.
ROSNOL SMA2GFA59-2730A/91 is an SMA Jack (Female) Right Angle RF Connector engineered for RF and microwave applications requiring compact installation and dependable signal performance. Featuring a 4-Hole Flange Mount structure with 8.64 mm hole spacing, this connector offers secure panel attachment and accurate interface positioning. Designed for 50 Ω systems, it supports frequencies from DC to 18 GHz while maintaining a VSWR of ≤1.30 and low insertion loss. The solder attachment and stub terminal configuration make it well suited for integration into RF modules, communication devices, microwave assemblies, and test equipment.
The connector utilizes a beryllium copper center contact and brass body, both finished with gold plating over a non-magnetic nickel-phosphorus underplate. This construction enhances electrical conductivity, corrosion resistance, and long-term mating reliability. A PTFE insulator provides excellent dielectric stability and supports consistent high-frequency performance. Additional mechanical characteristics include screw-lock coupling, a minimum of 500 mating cycles, center contact captivation of at least 27 N axial force, and an operating temperature range from -65°C to +165°C, ensuring reliable operation in various industrial environments.
This SMA right-angle flange mount connector is ideal for wireless communication equipment, RF instrumentation, antenna systems, microwave devices, and laboratory test setups. Its combination of stable impedance control, durable gold-plated contacts, and robust mounting design helps engineers achieve reliable signal transmission in space-constrained installations. The ROSNOL SMA2GFA59-2730A/91 is an effective RF interconnect solution for demanding high-frequency applications.
