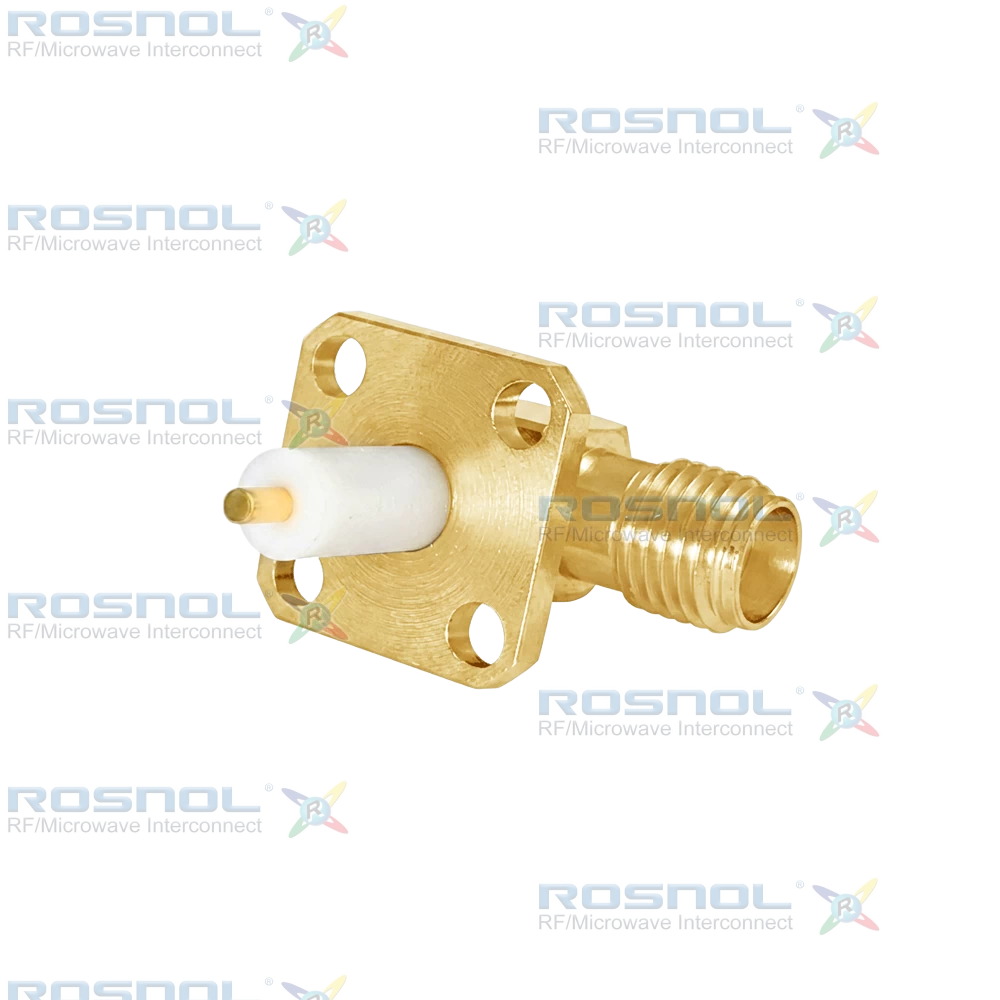

SMA Female RA Connector, 4 Hole Flange, 18 GHz

Order No:SMA2GFA59-2340A/91
Add Cart

Key Specifications

Type Design:
Standard
Impedance (Ohm):
50
Body Style:
Right Angle
Frequency, Max (GHz):
18
VSWR, Max:
1.30
Connector Series:
SMA
Connector Gender:
Jack (Female)
Connection Method:
Threaded (Screw-lock)
Center Contact:
Soldered
Mount Method:
4 Hole Flange
Body Material:
Brass
Body Plating:
Gold Plating (Non-magnetic nickel-phosphorus underplating)
Captivated Type:
Mechanical Captivation
Bankend Type:
Coaxial End

Description

SMA Female Right Angle Connector, 4 Hole Flange Mount, Stub Terminal, 8.64 mm Hole Spacing, 50 Ω, 18 GHz, VSWR ≤ 1.3.

ROSNOL SMA2GFA59-2340A/91 is an SMA Jack (Female) Right Angle Connector engineered for RF and microwave signal transmission up to 18 GHz. The connector features a 4-Hole Flange Mount design with 8.64 mm hole spacing, providing secure panel attachment and reliable interface alignment in compact RF assemblies. Designed for 50 Ω systems, it delivers a frequency range from DC to 18 GHz and a VSWR of ≤ 1.30, making it suitable for applications requiring consistent impedance matching and low signal reflection. The solder attachment and stub terminal configuration support efficient integration into high-frequency devices and subsystems.

The center contact is manufactured from beryllium copper and finished with gold plating over a non-magnetic nickel-phosphorus underplate for enhanced conductivity and corrosion resistance. The body is constructed from brass and receives the same gold-plated finish, providing both mechanical durability and reliable RF performance. A PTFE insulator ensures excellent dielectric stability. Additional mechanical features include screw-lock coupling, a minimum of 500 mating cycles, center contact captivation of at least 27 N axial force, and operation across a temperature range of -65°C to +165°C.

The SMA2GFA59-2340A/91 is an excellent choice for RF communication equipment, microwave assemblies, antenna systems, wireless infrastructure, test and measurement instruments, and industrial electronic platforms. Its combination of flange-mount stability, low-reflection electrical performance, and durable gold-plated construction makes it a dependable RF interconnect solution for demanding high-frequency applications.
