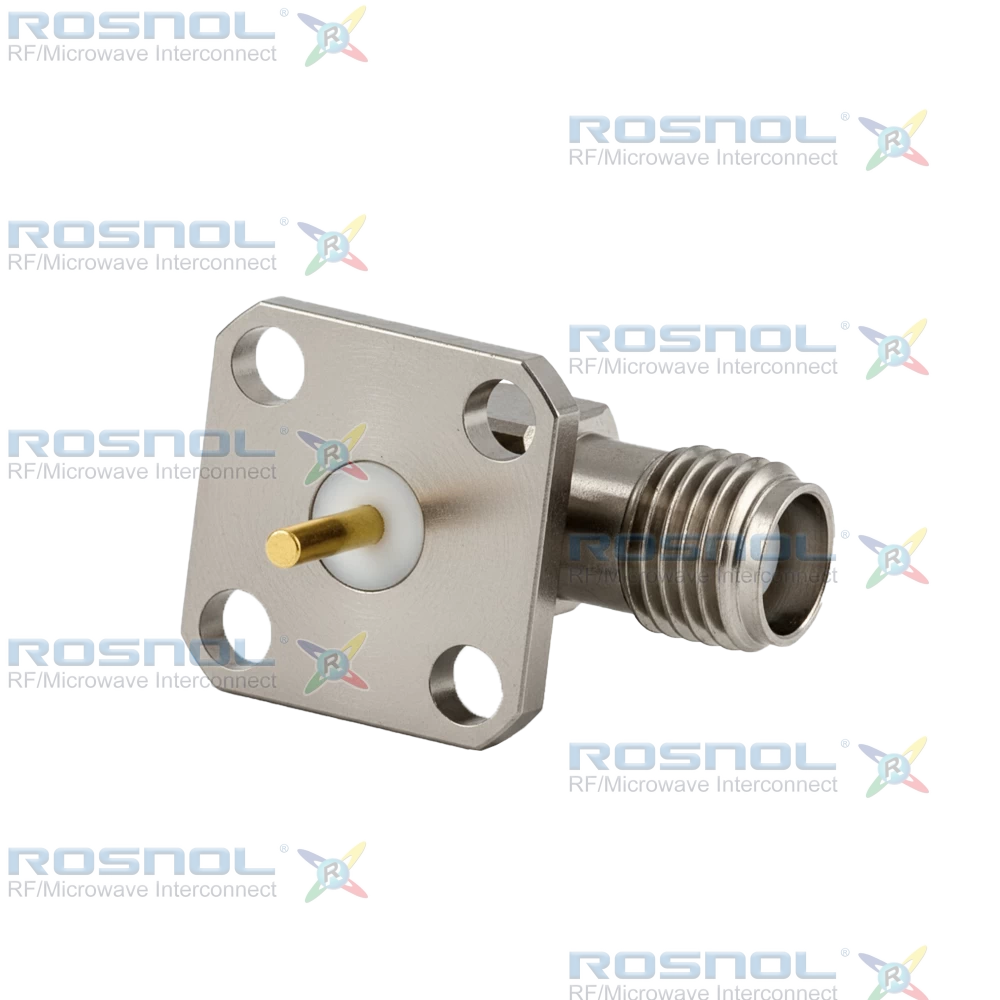

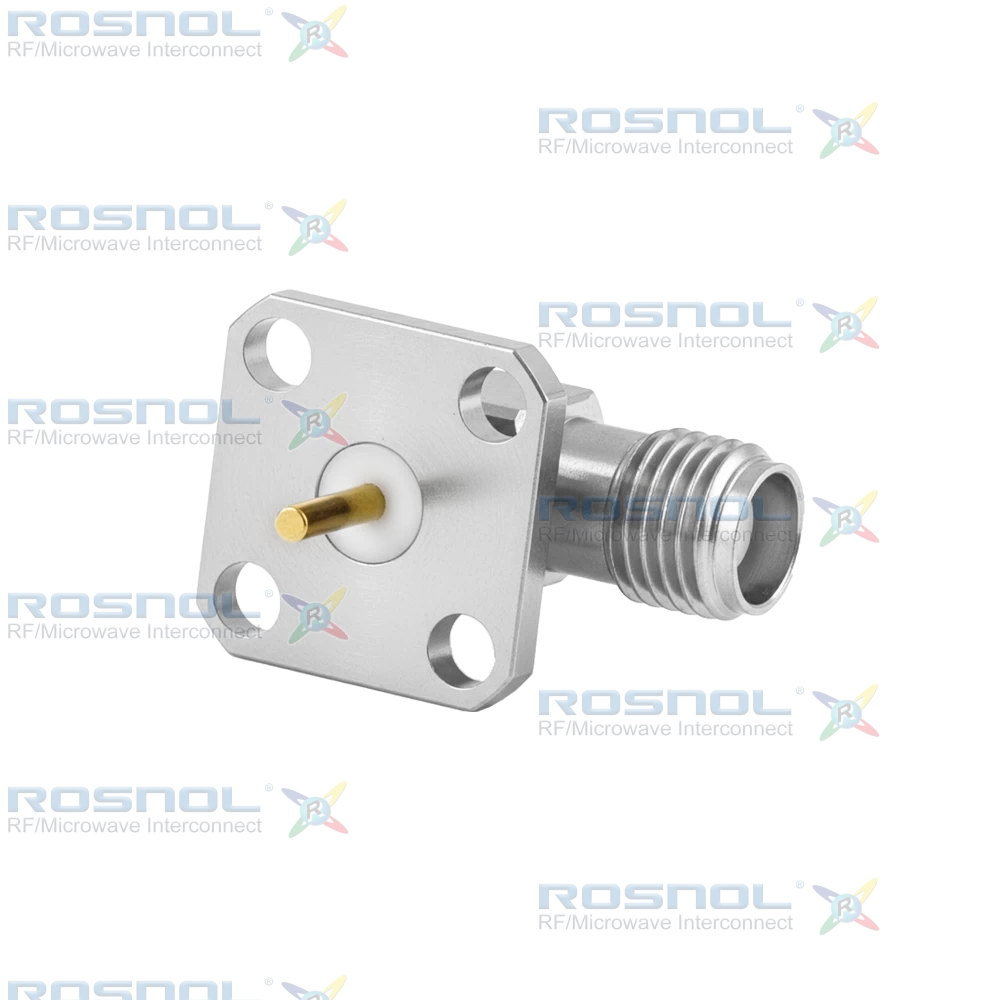

SMA Female RA Connector, 4 Hole Flange, 18 GHz

Order No:SMA2GFA59-1690A/H4
Add Cart

Key Specifications

Type Design:
Standard
Impedance (Ohm):
50
Body Style:
Right Angle
Frequency, Max (GHz):
18
VSWR, Max:
1.30
Connector Series:
SMA
Connector Gender:
Jack (Female)
Connection Method:
Threaded (Screw-lock)
Center Contact:
Soldered
Mount Method:
4 Hole Flange
Body Material:
Brass
Body Plating:
Copper-Tin Zinc Alloy
Captivated Type:
Mechanical Captivation
Bankend Type:
Coaxial End

Description

SMA Female Right Angle Connector, 4 Hole Flange Mount, Stub Terminal, 8.64 mm Hole Spacing, 50 Ω, 18 GHz, VSWR ≤ 1.3.

ROSNOL SMA2GFA59-1690A/H4 is an SMA Jack (Female) Right Angle RF Connector designed for RF and microwave applications requiring secure panel installation and reliable broadband performance. Featuring a 4-hole flange mount configuration with 8.64 mm hole spacing, this connector provides stable mechanical integration and simplified equipment assembly. Designed with 50 Ω impedance and operating from DC to 18 GHz, it delivers excellent electrical characteristics including VSWR ≤ 1.30, low insertion loss, and high insulation resistance. The right-angle configuration supports efficient cable routing while maintaining dependable signal integrity across high-frequency RF systems.

The connector utilizes a phosphor bronze center contact with 100 µinch gold plating over a non-magnetic nickel-phosphorus underplating for reliable conductivity and contact durability. The brass body with copper-tin-zinc alloy plating offers excellent corrosion resistance and mechanical strength, while the PTFE insulator ensures stable dielectric performance. The center contact features a solder attachment design with a stub terminal structure, providing secure electrical and mechanical termination. Mechanical features include a screw-lock coupling mechanism, 500 mating cycles minimum, recommended torque of 0.8 to 1.1 Nm, and an operating temperature range from-65°C to +165°C.

This SMA Female Connector is suitable for RF communication systems, microwave modules, wireless infrastructure, antenna interfaces, RF instrumentation, and test and measurement equipment. Its durable plated construction, broadband frequency capability, and reliable flange-mount design make it an effective RF interconnect solution for engineers and system manufacturers.
