Key Specifications
Type Design:
Standard
Body Style:
Straight
Impedance (Ohm):
50
Frequency, Max (GHz):
18
VSWR, Max:
1.25
Connector Style:
Panel Connector
Connector Series:
SMA
Connector Gender:
Jack (Female)
Connection Method:
Threaded (Screw-lock)
Center Contact:
Soldered
Mount Method:
4 Hole Flange
Body Material:
Brass
Body Plating:
Gold Plating (Nickel underplated)
Captivated Type:
Mechanical Captivation
Bankend Type:
Coaxial End
Description

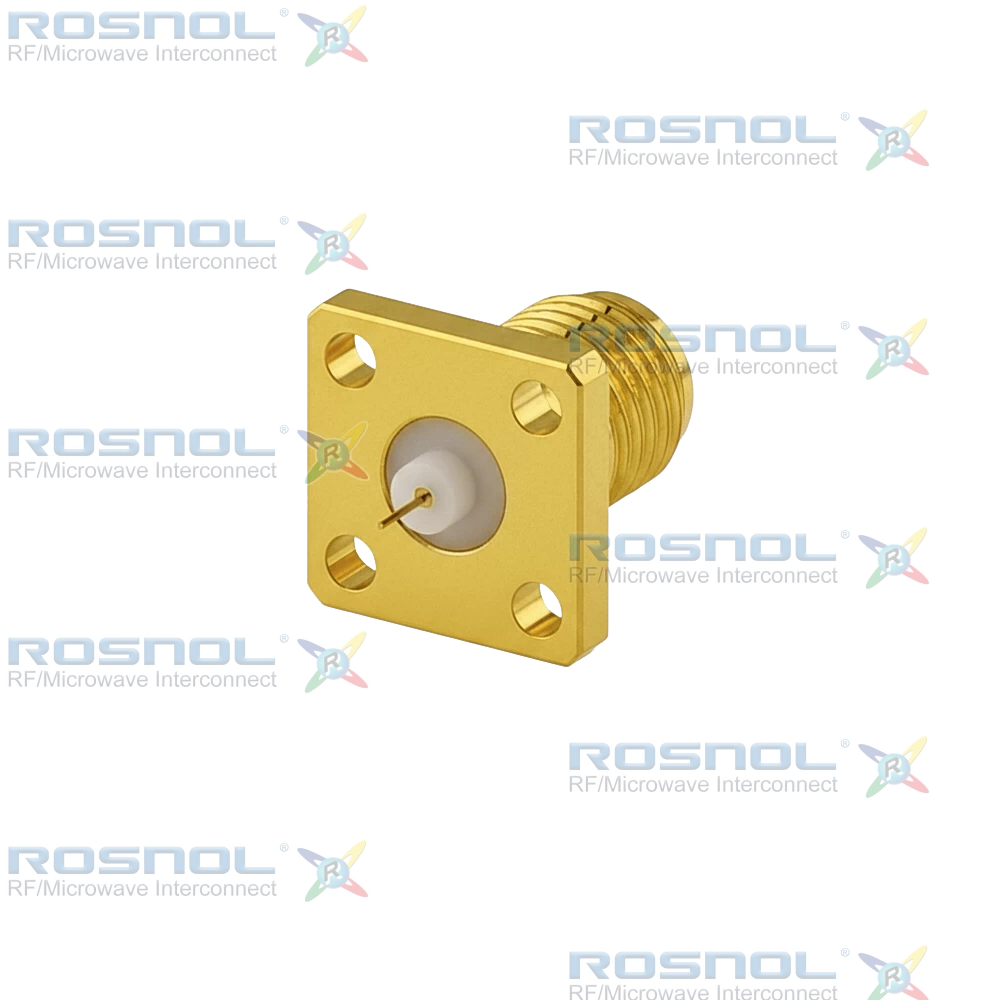

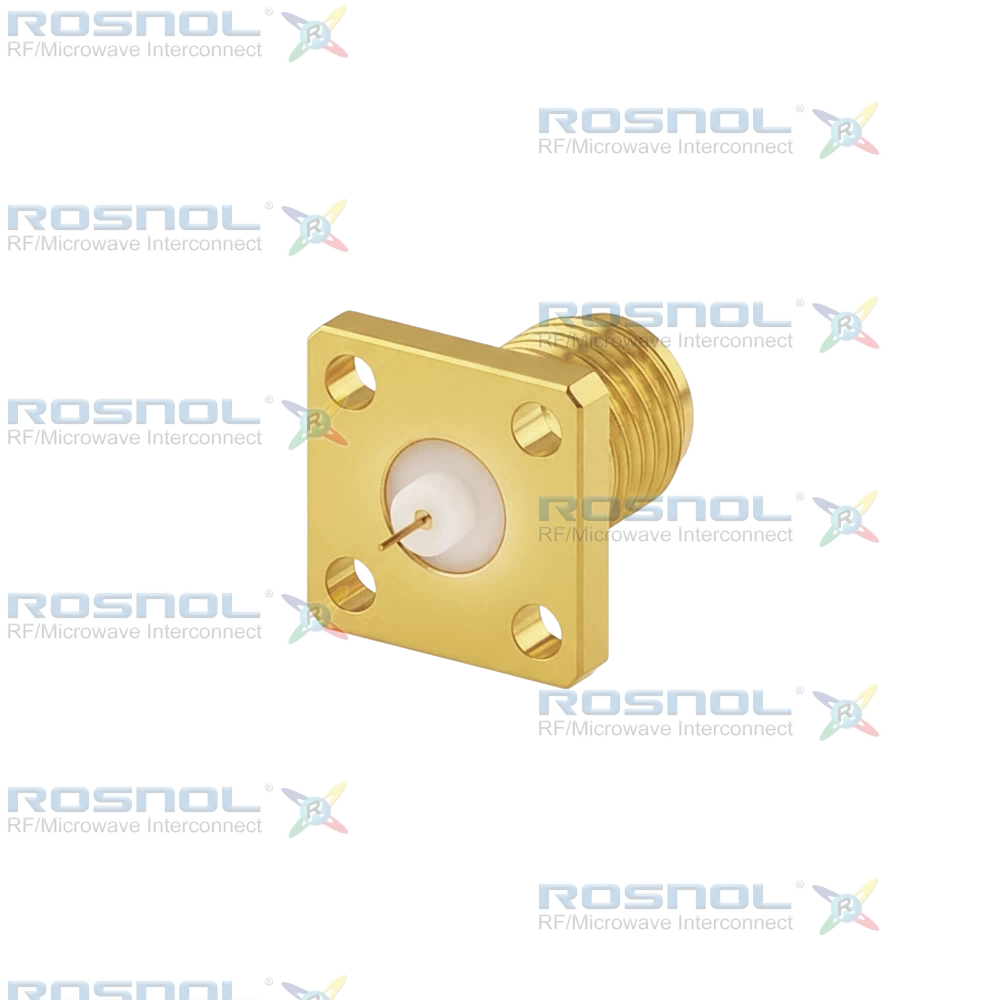

SMA Female Connector with Stub Terminal | Brass Body | Solder Attachment
The ROSNOL SMA2GFA50-1300D/91 is a straight panel receptacle jack designed for SMA female coaxial applications. It supports a 50 Ω impedance and operates across DC to 18 GHz with a VSWR ≤ 1.25. The connector features a screw-lock coupling mechanism and a soldered centre contact. Terminal type is coaxial end, and the captivated type is mechanical.This connector is built with a brass body and gold plating over nickel underplating. The centre contact is beryllium copper with the same plating configuration, and the insulator is PTFE, providing reliable electrical insulation and stability.
ROSNOL’s precision-engineered RF connectors offer a competitive alternative to products from leading manufacturers in Europe, the USA, and other global markets. All Rosnol RF components are precision-manufactured in ISO 9001-certified facilities, and are fully RoHS and REACH compliant, ensuring environmental safety and global regulatory alignment. Customization services for plating, materials, and mechanical design are available upon request.
