Key Specifications
Type Design:
Standard
Body Style:
Straight
Impedance (Ohm):
50
Frequency, Max (GHz):
18
VSWR, Max:
1.30
Connector Style:
Panel Connector
Connector Series:
SMA
Connector Gender:
Plug (Male)
Connection Method:
Threaded (Screw-lock)
Center Contact:
Soldered
Mount Method:
2 Hole Flange
Body Material:
Brass
Body Plating:
Gold Plating (Nickel underplated)
Captivated Type:
Mechanical Captivation
Bankend Type:
Coaxial End
Description

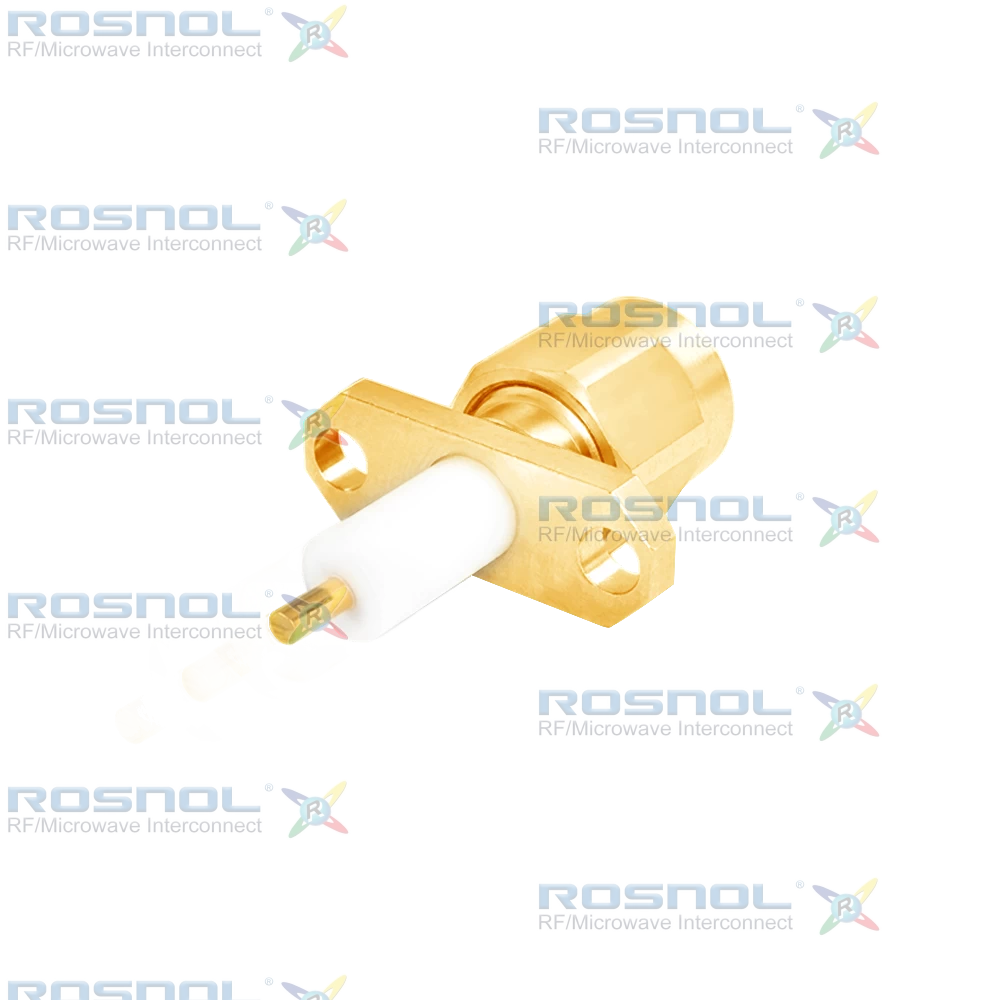

SMA Male Connector with Stub Terminal | Gold Plated Brass Body | Mechanical Captivation
ROSNOL introduces a high-performance SMA plug (male) connector engineered for demanding RF and microwave applications. This connector features a 50 Ω impedance and operates across a broad frequency range from DC to 18 GHz, ensuring excellent signal integrity with a VSWR of ≤1.30. Designed for 2-hole flange mounting, it boasts a precise hole spacing of 12.22mm (.481 inch). The robust screw-lock coupling echanism ensures secure connections , while the centre contact is reliably soldered. It utilizes a stub terminal type with mechanical captivation for the center contact.The connector’s critical components, including the centre contact, body, and coupling nut, are crafted from durable brass and feature gold plating with a nickel underplate, providing superior conductivity and corrosion resistance. The insulator is made from PTFE, and a silicone rubber gasket is used for sealing.
ROSNOL’s precision-engineered RF connectors offer a competitive alternative to products from leading manufacturers in Europe, the USA, and other global markets. All Rosnol RF components are precision-manufactured in ISO 9001-certified facilities, and are fully RoHS and REACH compliant, ensuring environmental safety and global regulatory alignment. Customization services for plating, materials, and mechanical design are available upon request.
