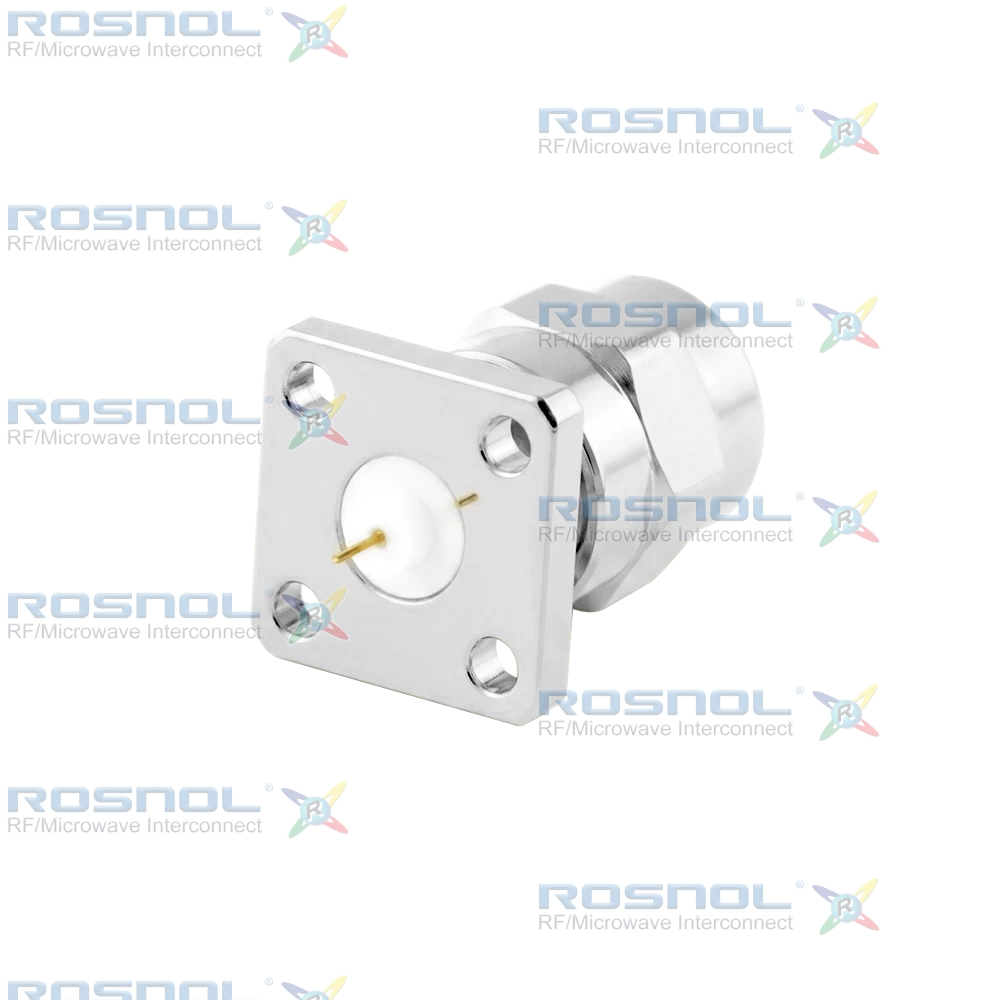

SMA Male Connector, 4 Hole Flange, 18 GHz

Order No:SMA1GFA50-1630B/1XX
Add Cart

Key Specifications

Type Design:
Standard
Impedance (Ohm):
50
Body Style:
Straight
Frequency, Max (GHz):
18
VSWR, Max:
1.30
Connector Series:
SMA
Connector Gender:
Plug (Male)
Connection Method:
Threaded (Screw-lock)
Center Contact:
Soldered
Mount Method:
4 Hole Flange
Body Material:
Stainless Steel
Body Plating:
Passivated
Captivated Type:
Mechanical Captivation
Bankend Type:
Coaxial End

Description

SMA Male Connector, 4 Hole Flange Mount, Stub Terminal, 6.35 mm Hole Spacing, 50 Ω, DC-18 GHz VSWR ≤1.30.

The ROSNOL SMA1GFA50-1630B/1XX is an advanced SMA plug (male) connector optimized for high-frequency microwave applications. Utilizing a 4 hole flange mount configuration with a 6.35 mm (0.250 inch) hole spacing and a soldered stub terminal, this connector supports seamless operation from DC to 18 GHz. It delivers a stable 50-ohm impedance alongside a dependable VSWR of 1.30, minimizing signal reflection and ensuring exceptional performance for advanced RF systems.

Engineered for longevity, the passivated stainless steel body and coupling nut are paired with a brass center contact finished in precision gold plating over a non-magnetic nickel-phosphorus underplate. A reliable PTFE dielectric insulator secures internal alignment, paired with a secure screw-lock coupling mechanism rated for more than 500 mating cycles. The robust assembly handles operational temperatures from -65°C to +165°C with dependable axial and radial contact captivation.

Tailored for RF test and measurement instrumentation, broadband wireless communication modules, radar assemblies, and satellite communication hardware, this connector provides lasting electrical performance and durability for professional electronics engineering.
