SMA Male Connector, 4 Hole Flange, 18 GHz

Order No:SMA1GFA50-1630B/111
Add Cart

Key Specifications

Type Design:
Standard
Impedance (Ohm):
50
Body Style:
Straight
Frequency, Max (GHz):
18
VSWR, Max:
1.30
Connector Series:
SMA
Connector Gender:
Plug (Male)
Connection Method:
Threaded (Screw-lock)
Center Contact:
Soldered
Mount Method:
4 Hole Flange
Body Material:
Brass
Body Plating:
Gold Plating (Non-magnetic nickel-phosphorus underplating)
Captivated Type:
Mechanical Captivation
Bankend Type:
Coaxial End

Description

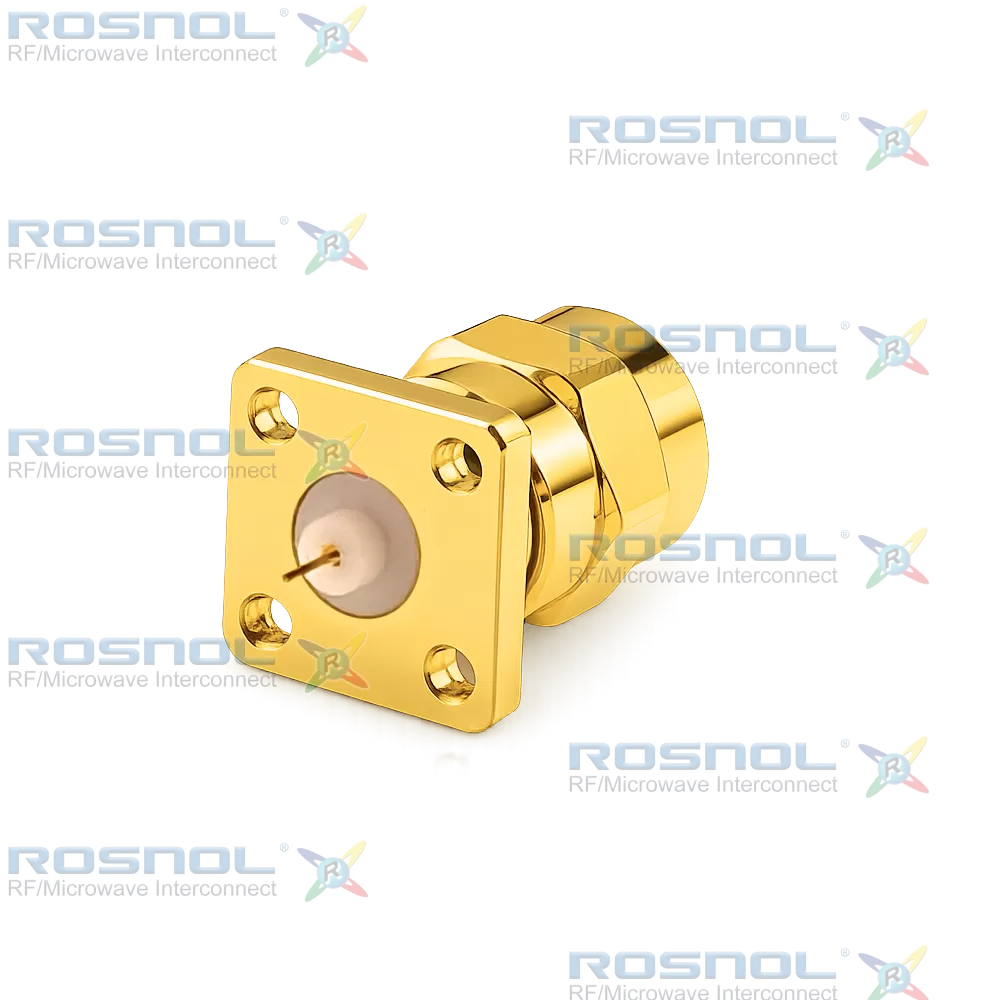

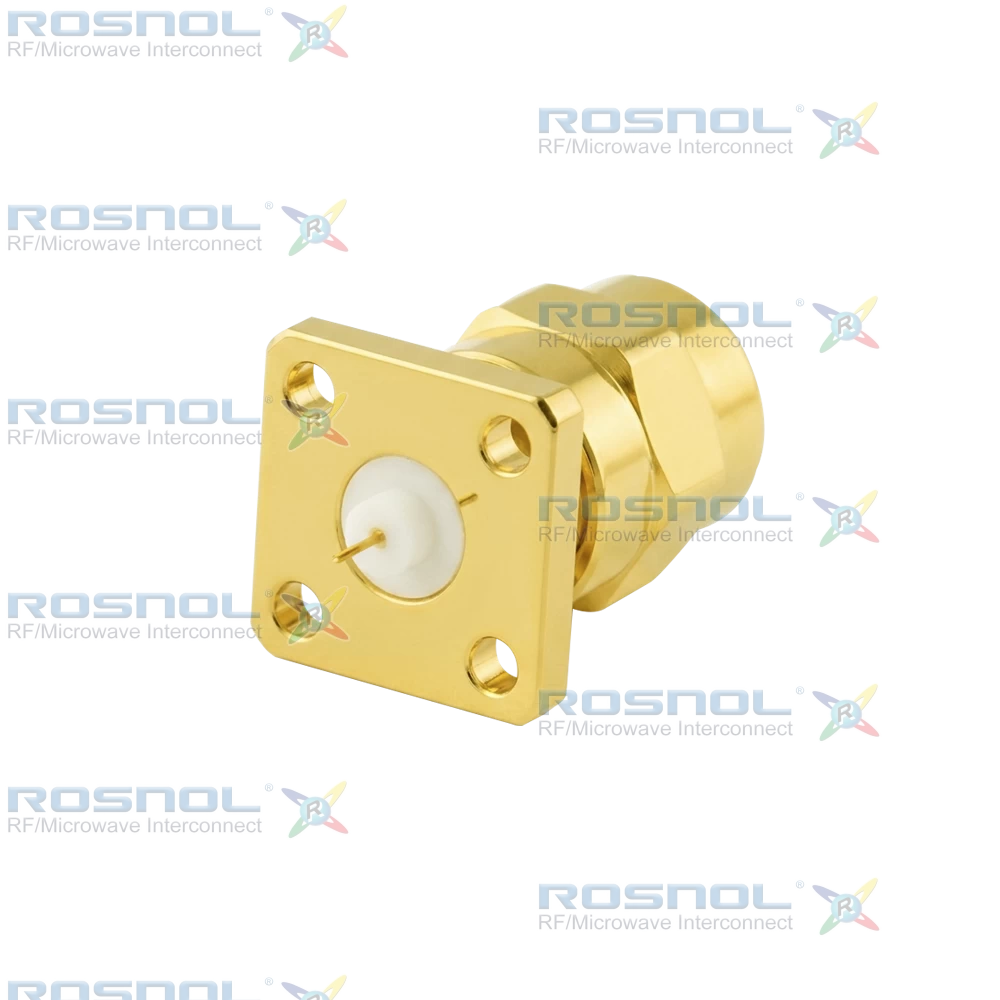

SMA Male Connector, 4 Hole Flange Mount, Stub Terminal, 6.35 mm Hole Spacing, 50 Ω, DC-18 GHz VSWR ≤1.30.

The ROSNOL SMA1GFA50-1630B/111 is a precision-engineered SMA plug (male) connector designed for demanding microwave and RF connectivity. Featuring a 4 hole flange mount layout with a 6.35 mm (0.250 inch) hole spacing and a stub solder terminal, it delivers exceptional broadband performance from DC to 18 GHz. Maintaining a strict 50-ohm characteristic impedance, it ensures low signal distortion with a stable VSWR of 1.30 and minimal insertion loss in high-frequency circuits.

Both the brass body, coupling nut, and the brass center contact feature premium gold plating with a non-magnetic nickel-phosphorus underlayer to maximize electrical conductivity. A durable PTFE insulator provides excellent dielectric properties, while the screw-lock coupling mechanism ensures secure engagement across more than 500 mating cycles. Built for resilience, it withstands temperatures from -65°C to +165°C with robust axial and radial contact captivation.

This connector is perfectly suited for high-performance RF test fixtures, telecommunication base stations, microwave modules, and defense electronics. It offers exceptional durability, stable electrical parameters, and reliable signal transmission for professional engineering environments.
