Product Details

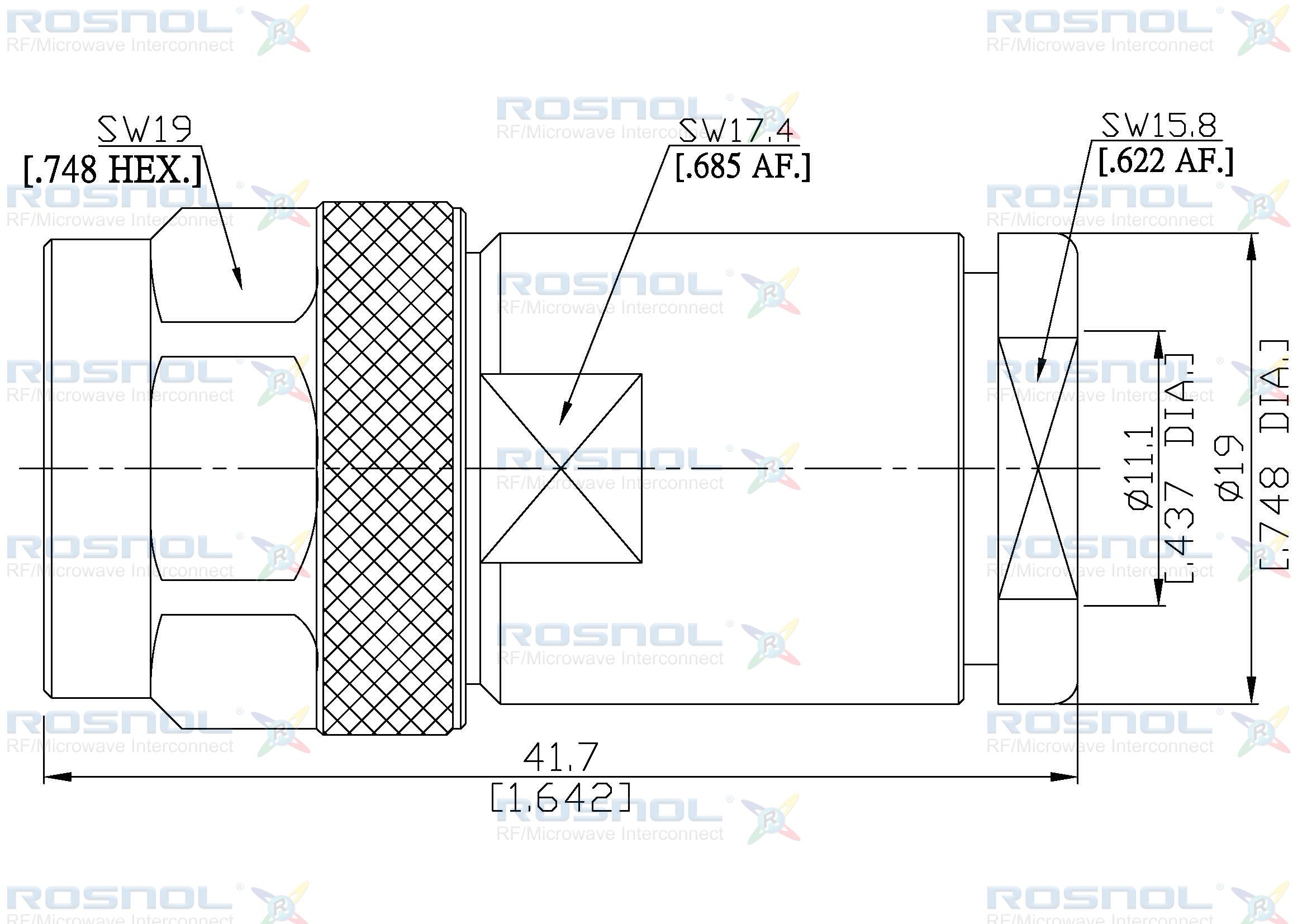

N Plug (Male) Straight Clamp Connector

Order No:N1D50-R400C/144
Product Name:Cable Clamp
Series:N
Gender:Plug (Male)
Configuration:Straight
Suitable Cable:Times LMR-400
Backend Type:Cable Clamp
Application Field:Communication
Rsonl P/N:N1D50-R400C/144

Product Introduction

The N1D50-R400C/144 is an N plug male coaxial connector with an interface type that suits LMR 400, Belden 7810A, Belden 8214 and Belden 9913. Its attachment method is solder or crimp for the pin and clamp for the cable. This connector design has an impedance of 50 Ohm and is fully compliant to RF industry standards. It has a straight connector configuration.

The N1D50-R400C/144 has a brass pin with gold plating (nickel underplated) and a brass body with copper-tin-zinc alloy plating. Similar to almost all of our countless other millimeter wave, microwave and RF components, our N plug coaxial connector is in full compliance with RoHS (Directive 2011/65/EU) and REACH (EC 1907/2006).

Rosnol's N1D50-R400C/144 male N plug RF connector has a maximum frequency of 6 GHz and a max. VSWR of 1.30 or min. Return Loss of 17.69 dB.As a result, this high-quality cable connector is a good alternative to the interconnect product choices from competitors from Europe, the USA, or other markets.

Rosnol's millimeter wave, microwave and radio frequency products are precision manufactured in and shipped from its ISO certified (ISO9001:2015) factory. Customization (material, plating, body, etc.) is possible upon request.

LMR is a Trademark of Times Microwave
